RoboCupJunior 2004 RESCUE Building Plans

Last updated: Wed 31 Dec 2003 (Sklar and Green)

Below are the building plans for a single module.

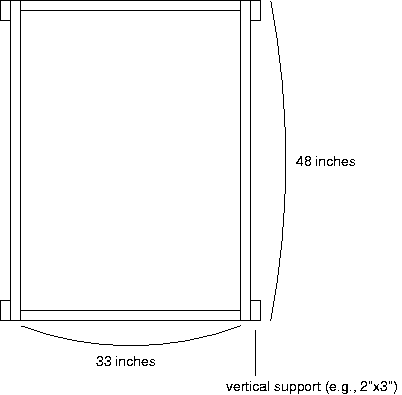

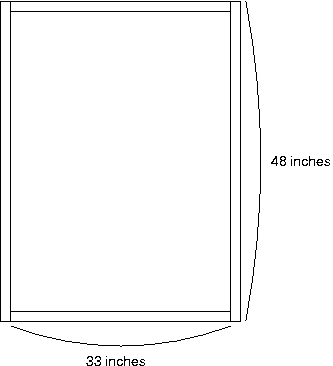

1. Construct a frame out of sturdy wood such as 2x4s, 2x3s or 2x2s. Cut two pieces 48 inches long and two pieces 33 inches long. Attach them together to create a frame, as follows:

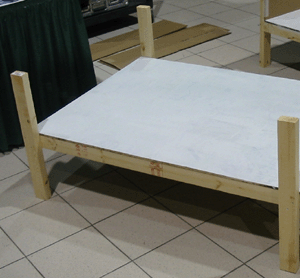

2. Lay a piece of 4 foot by 3 foot plywood or fibreboard (1/4" thickness is adequate) on top of the frame and attach it securely.

3. Cut four 2 foot long pieces of the 2x4s (or 2x3s or 2x2s) to act as vertical supports (like legs).

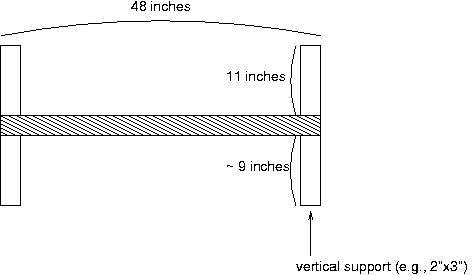

4. Attach the vertical supports to the outside of the frame at each corner so that each vertical piece extends 11 inches above the floor of the module. It is recommended that you drill holes through the vertical support and attach them to the frame using bolts, so that it is easy to take the module apart to transport it.

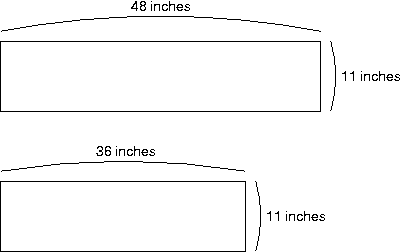

5. Cut 4 walls out of fibreboard, cardboard or foamcore, two of each size as shown below:

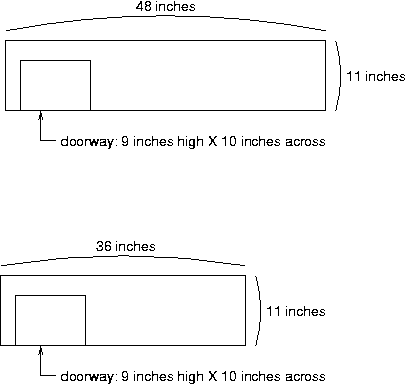

6. Cut a doorway in ONE wall of each size, as shown below:

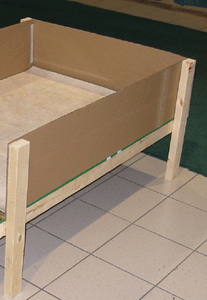

7. Attach the walls to the vertical supports, as shown below:

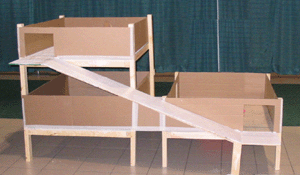

   Note that you can turn the pieces with the doorways to face either way (i.e., the doorway can be on the left or the right). This is illustrated in the last image on this page, where the lower level has its doorway on the right but the upper level has its doorway on the left.

8. Paint the floor of the module white or cover it with white material such as linoleum or Fablon.

9. Using black electrical tape, make a line-following course along the floor of the room. Begin the course in the middle of one of the doorways and end in the middle of the other doorway.


10. Make "victims" out of green tape, aluminized tape or aluminum foil and place them across the black line.


You can make multiple modules and connect them via hallways or ramps. The hallways and ramps are at least 12 inches (approximately 30 cm) wide. Note that a ramp begins and ends on square platforms, level with the room it is going into/out of. The pitch of a ramp will be no steeper than 22 degrees. The example below travels a 60-inch distance horizontally over a 24-inch height. The angled section of the ramp is approximately 65 inches long.

(Unlike the sample above, continue the wall along the ramp so that the robot won't fall off!)
